A scrolling screen allows for image manipulation through physical means.

OverviewScroller combines physical movement with on-screen image manipulation and distortion. Pushing the screen along the track changes the width of the image and blends it with the previous image captured by the camera.

Video:

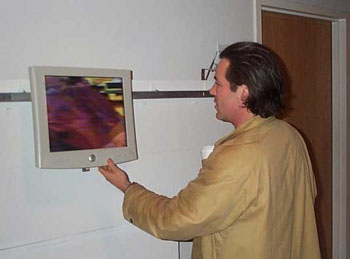

Prototype

Nothing in the physical world is sacred and nothing in the virtual world should be either. When you use a scrollbar on a computer you are manipulating virtual data on a stationary screen. Scroller changes this dynamic by allowing people to change the image on screen by moving the screen itself.

System

The project consists of a flat panel monitor attached to a 6 ft. long sliding closet door track. The track is affixed to a piece of wood that is mounted on a flat wall surface. Embedded in the wood are six switches that relay the screen’s position to a microcontroller. The microcontroller then sends serial information to the computer to tell it how to display the image depending on the screen’s location along the X axis.

A camera hangs on the right side of the
panel. When the screen is below it, the camera captures live video and
the user and takes a snapshot that is used as the manipulated image.

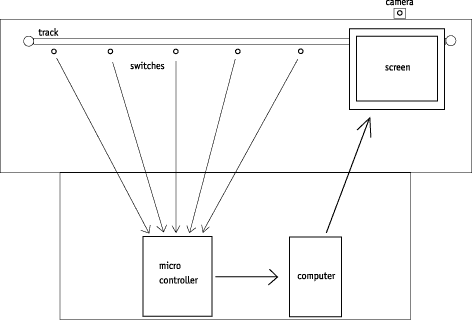

Scroller shematic diagram:

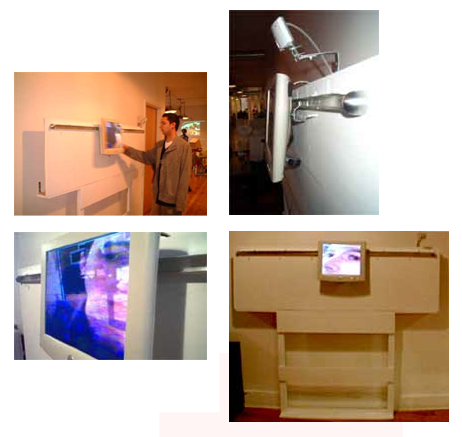

Scroller installation at ITP – 5/01:
